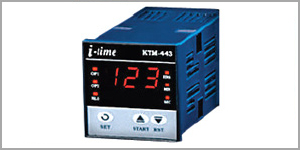

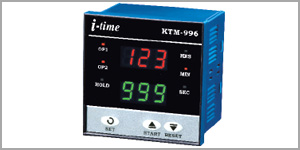

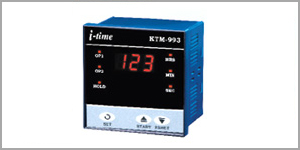

Digital Timers




Digital Temperature Contoller Digital Temperature Contoller

Features
• Low cost, Effective, Easy to use Keyboard based Digital timer
• 3-Digit display
• Programmable timer start modes to suit various applications
• Programmable ON Delay/Interval/Cyclic/Forward-Reverse mode
• Programmable Up/Down counting
• Programmable Auto Reset/Latch Output
• Programmable Front Reset
• Programmable Memory Backup
• Programmable Output 2 functions : Auxiliary contact/End of    cycle/Instant contact
• High Accuracy: 0.05% of Full scale (Repeat Accuracy: 0.01%)
• Multiple Time Range: From 0.01 Sec. to 999 Hrs.
• Time base selection via keyboard
• Time Setting via keyboard
• Independent time base for both cycles in Cyclic mode
• Configuration at power on (To prevent unauthorized tampering)
• Universal supply voltage ranges from 90 To 270 VAC
Features
• Low cost, Effective, Easy to use Keyboard based Digital timer
• Programmable timer start modes to suit various applications
• 3-Digits, Dual Row Display [Upper 3-Digit: Run time
   & Lower  3-Digit: Set time]
• Programmable No. of cycle in Cyclic mode
• Programmable ON Delay/Interval/Cyclic/ Forward-Reverse
   mode [with Hold time]
• Programmable Up/Down counting
• Programmable total time in Forward-Reverse mode
• Programmable Auto Reset/Latch Output
• Programmable Front Reset
• Programmable Memory Backup
• Programmable Output 2 functions : Auxiliary contact/End of    cycle/Instant contact
• High Accuracy: 0.05% of Full scale (Repeat Accuracy: 0.01%)
• Multiple Time Range: From 0.01 Sec. to 999 Hrs.
• Time base selection via keyboard
• Time Setting via keyboard
• Independent time base for both cycles in Cyclic mode
• Configuration at power on (To prevent unauthorized tampering)
• Universal supply voltage ranges from 90 To 270 VAC
• Available in 5 Standard DIN sizes
