Fork / Slot Sensors


We are Manufacturer, Supplier, Exporter of Fork Sensors, Slot Sensors - 50mm Slot, 20mm Slot, 5mm Slot, 3mm Slot and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.

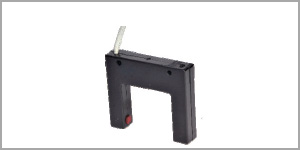

50mm Slot

Slot Width/Depth

50 mm/45mm

Dimension

70x80x15mm

Housing Material

ABS Plastic

Max  Load  Current

250Ma

Supply Voltage

10-30 Volt DC

Switching  Frequency

100Hz

Response Time

15ms

Operating Temperature

-25ºC- +55ºC

Short Circuit Protection

Yes

Connecting Type

2mtrs,3core pvc cable

DC 3 wire 10-30V  NPN N.O.

STO-NO-F50

DC 3 wire 10-30V  NPN N.C.

STO-NC-F50

DC 3 wire 10-30V  PNP N.O.

STO-PO-F50

DC 3 wire 10-30V  PNP N.C.

STO-PC-F50





Request a Quote

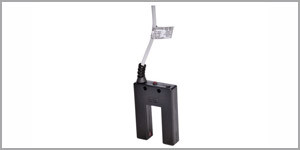

20mm Slot


20mm Slot

Slot Width/Depth

20 mm/45mm

Dimension

70x50x15mm

Housing Material

Plastic

Max  Load  Current

250mA

Supply Voltage

10-30 Volt DC

Switching  Frequency

100Hz

Response Time

15ms

Operating Temperature

-25ºC- +55ºC

Short Circuit Protection

Yes

Connecting Type

2mtrs,3core pvc cable

DC 3 wire 10-30V  NPN N.O.

STO-NO-F20

DC 3 wire 10-30V  NPN N.C.

STO-NC-F20

DC 3 wire 10-30V  PNP N.O.

STO-PO-F20

DC 3 wire 10-30V  PNP N.C.

STO-PC-F20





Request a Quote

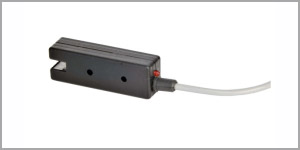

5mm Slot


5mm Slot

Slot Width/Depth

5 mm/10mm

Dimension

60x20x15mm

Housing Material

Plastic

Max  Load  Current

250Ma

Supply Voltage

10-30 Volt DC

Switching  Frequency

100Hz

Response Time

15ms

Protecting  category

IP67

Operating Temperature

-25ºC- +55ºC

Short Circuit Protection

Yes

Connecting Type

2mtrs,3core pvc cable

DC 3 wire 10-30V  NPN N.O.

STO-NO-F5

DC 3 wire 10-30V  NPN N.C.

STO-NC-F5

DC 3 wire 10-30V  PNP N.O.

STO-PO-F5

DC 3 wire 10-30V  PNP N.C.

STO-PC-F5





Request a Quote

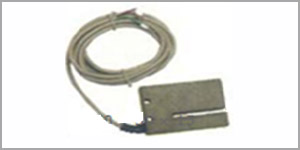

3mm Slot


3mm Slot

Slot Width/Depth

3 mm/45mm

Dimension

70x50x15mm

Housing Material

Magnetic

Max  Load  Current

250mA

Supply Voltage

10-30 Volt DC

Switching  Frequency

100Hz

Response Time

15ms

Protecting  category

IP67

Operating Temperature

-25ºC- +55ºC

Short Circuit Protection

Yes

Connecting Type

2mtrs,3core pvc cable

DC 3 wire 10-30V  NPN N.O.

STO-NO-F3

DC 3 wire 10-30V  NPN N.C.

STO-NC-F3

DC 3 wire 10-30V  PNP N.O.

STO-PO-F3

DC 3 wire 10-30V  PNP N.C.

STO-PC-F3



Request a Quote
