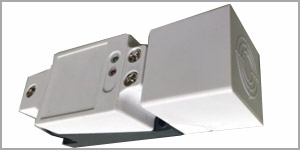

40 X 40 X 112 - Variable Head DC Block


40 X 40 X 112 - Variable Head DC Block
40 X 40 X 112 - Variable Head DC Block

Switching Distance, Sn: mm

15mm

Housing Material

Plastic

With LED     Without LED

Max  Load  Current

250mA

Supply Voltage

10-30 Volt DC

Switching  Frequency

100Hz

Response Time

1ms/1ms

Protecting  category

IP67

Operating Temperature

-25ºC- +70ºC

Short Circuit Protection

Yes

Connecting Type

Terminal

DC 3 wire 10-30V  NPN N.O.

STI-Q40NO-15-V

DC 3 wire 10-30V  NPN N.C.

STI-Q40NC-15-V

DC 3 wire 10-30V  PNP N.O.

STI-Q40PO-15-V

DC 3 wire 10-30V  PNP N.C.

STI-Q40PC-15-V
