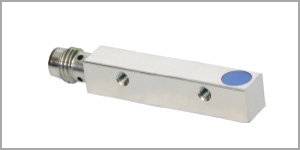

Inductive Proximity Switches - 8 X 8 X 40 -3 Pin Connector


We are Manufacturer, Supplier, Exporter of Inductive Proximity Switches - 8 X 8 X 40 -3 Pin Connector and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.

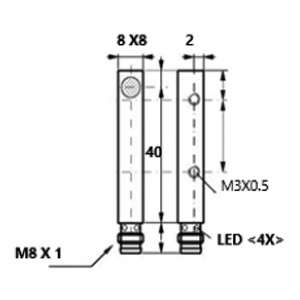

8 X 8 X 40 -3 Pin Connector
8 X 8 X 40 -3 Pin Connector

Switching Distance, Sn : mm

2 mm

Housing Material

Nickel plated brass

With LED     Without LED

Max  Load  Current

250Ma

Supply Voltage

10-30 Volt DC

Switching  Frequency

2KHz

Response Time

0.1ms/0.1ms

Protecting  category

IP67

Operating Temperature

-25ºC- +70ºC

Short Circuit Protection

Yes

Connecting Type

M8 Connector

DC 3 wire 10-30V  NPN N.O.

STI- Q8X8NO -1.5-C3

DC 3 wire 10-30V  NPN N.C.

STI- Q8X8NC -1.5-C3

DC 3 wire 10-30V  PNP N.O.

STI- Q8X8PO -1.5-C3

DC 3 wire 10-30V  PNP N.C.

STI- Q8X8PC -1.5-C3
