Solid State Relays and Relay Modules


Analog SSR with Input 0 -10 VDC or 4 - 20 mA
Available in Single phase & 3 Phase model upto 90 AMP


Sai Tech Control Manufacture SSRs
from current rating 2A to 150 Amp.
Output Voltage : 240 v or 600 VAC.
DC output relays with rating 110 VDC 10 Amp. to 1000 Amp.

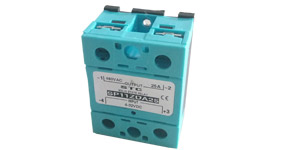

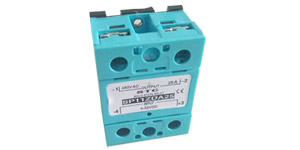

Single phase Single phase

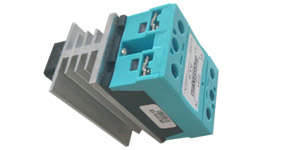

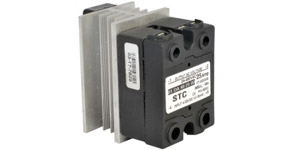

Single phase with heat sink Single phase with heat sink

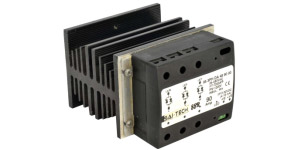

Three Phase Three Phase

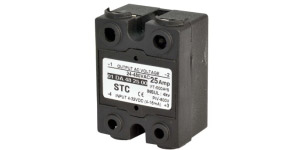

 Solid State Relays Solid State Relays
 Solid State Relays Solid State Relays
 Solid State Relays Solid State Relays




Input Control
Specification Min. Max Units
Control Voltage Range 3
75
32
240
VDC
VAC
Input Current -400C < ta < 800 C   20 mA
Turn off Voltage- 30 C <ta . < 80 C   1
4
VDC
VAC
Turn off Voltage- 40 C < ta . < 80 C 75 260 VAC
Isolation ( Input to Output, Input to case Output to case)   10 OHMS
Output (Load)
Specification Min. Max Units
Output Current rating with heat sink 0.05 10 25
15, 40, 60
AMPS
RMS
Load Voltage Rating 25 480 VAC (RMS)
Frequency rang 47 70 Hz
Surge Current rating
( 20ms ) at 40 amp type 425 10 AMP
over voltage rating (Transisent Peak) 1200   V Peak

Request a Quote



Relay Modules :


Relay modules are available like 2/4/8/16 channel with base with fuse protection,
Relay O/p = 1C/o / 2C/o contacts.

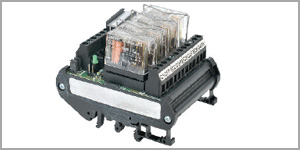

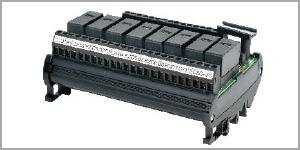

Relay Modules
Relay Modules
Relay Modules

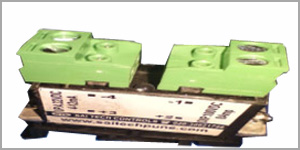

Single channel SSR
