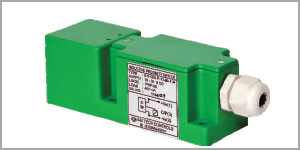

Inductive Proximity Switches - 40 X 40 X 112 - DC Block



We are Manufacturer, Supplier, Exporter of Inductive Proximity Switches - 40 X 40 X 112 - DC Block and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.

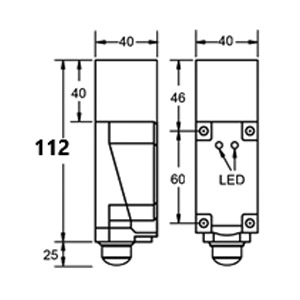

40 X 40 X 112 - DC Block
40 X 40 X 112 - DC Block

Switching Distance, Sn: mm

15 mm

Housing Material

Plastic

With LED With LED    m2 Without LED

m1

Max  Load  Current

250mA

Supply Voltage

10-30 Volt DC

Switching  Frequency

100Hz

Response Time

1ms/1ms

Protecting  category

IP67

Operating Temperature

-25ºC- +70ºC

Short Circuit Protection

Yes

Connecting Type

Terminal

DC 3 wire 10-30V  NPN N.O.

STI-Q40NO-15

DC 3 wire 10-30V  NPN N.C.

STI-Q40NC-15

DC 3 wire 10-30V  PNP N.O.

STI-Q40PO-15

DC 3 wire 10-30V  PNP N.C.

STI-Q40PC-15
