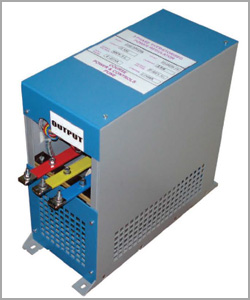

Thyristorised (SCR) Power Controllers

We are Manufacturer, Supplier, Exporter of Thyristorised Power Controllers, SCR Power Controllers, Silicon Controlled Rectifiers Power Controllers and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.

For the electrical heating system to control the temperature at the set point by switching contractors has many disadvantages, such as wear and tear, limited life of contractor, noisy operation. Besides these it has limited accuracy due to limitation of speed of operation, hence loss of power. All above mentioned disadvantages are eliminated by STC Thyristor Controller.

Applications :

All types of Electrical Heating Systems.
Infrared Ovens.
Vacuum Brazing Furnace.
Continuos Annealing / Bell Furnace.

Salient Features :

From medium to higher capacity or single / three phase load
Sturdy and Rugged Design.
Facility of Local and Remote Operation.
Good accuracy over full range.
Better external noise immunity.

Standard Protections :

Built-In
Adjustable over current limit.
dv / dt protection by RC snubber.

Request a Quote

Input	:	Single / Three phase AC 50 Hz.
Output	:	0-95% of rated input. (lockable 50-100%)
Control Signal	:	Local-Multiturn potentio meter
Ambient Temperature	:	45⁰C Max.
Standard Capacities :
Single Phase up to 10 kw
Three Phase up to 200 kw
