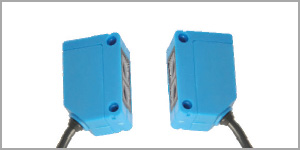

Through Scan Sensor



31 X 20 X12-3Wire-DC


31 X 20 X12-3Wire-DC
31 X 20 X12-3Wire-DC

Diameter

            Q31

Sensing    Mode

Through beam

Sensing Range

5M

Housing Material

Plastic

Max  Load  Current

250Ma

Supply Voltage

10-30 Volt DC

Switching  Frequency

250Hz

Response Time

1ms

Operating Temperature

-25ºC- +55ºC

Short Circuit Protection

Yes

Connecting Type

2mtrs,3core pvc cable

Emitter

PPQ31-T5E-H1V2

NPN Light ON & Dark ON

PPQ31-T5N-C1V2

PNP Light ON & Dark ON

PPQ31-T5N-C1V2





Request a Quote

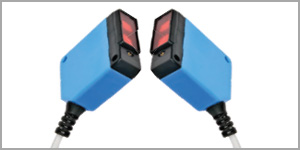

17 X 50 X 55-3Wire-DC


31 X 20 X 12-3Wire-DC
31 X 20 X 12-3Wire-DC

Diameter

            Q50

Sensing    Mode

Through-beam

Sensing Range

20m

Housing Material

Plastic

Max  Load  Current

250Ma

Supply Voltage

10-30 Volt DC

Switching  Frequency

100Hz

Response Time

5ms

Operating Temperature

-25ºC- +55ºC

Short Circuit Protection

Yes

Connecting Type

2mtrs,3core pvc cable

DC 3 wire 10-30V  NPN N.O.

STO-17X50NO-TB

DC 3 wire 10-30V  NPN N.C.

STO-17X50NC-TB

DC 3 wire 10-30V  PNP N.O.

STO-17X50PO-TB

DC 3 wire 10-30V  PNP N.C.

STO-17X50PC-TB







Request a Quote

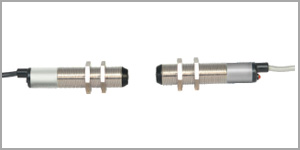

M18 X 55-3Wire-DC


M18 X 55-3Wire-DC
M18 X 55-3Wire-DC

Diameter

            M18

Sensing Mode

Through-beam

Sensing Range

3 M

Housing Material

Brass

Max  Load  Current

250Ma

Supply Voltage

10-30 Volt DC

Switching  Frequency

100Hz

Response Time

15ms

Protecting  category

IP67

Operating Temperature

-25ºC- +55ºC

Short Circuit Protection

Yes

Connecting Type

2mtrs,3core pvc cable

DC 3 wire 10-30V  NPN N.O.

STO-M18NO-TB

DC 3 wire 10-30V  NPN N.C.

STO-M18NC-TB

DC 3 wire 10-30V  PNP N.O.

STO-M18PO-TB

DC 3 wire 10-30V  PNP N.C.

STO-M18PC-TB



Request a Quote
