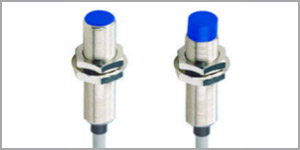

Inductive Proximity Switches - M18 X 65/75-3Wire-DC



We are Manufacturer, Supplier, Exporter of Inductive Proximity Switches - M18 X 65/75-3Wire-DC and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.

M18 X 65/75-3Wire-DC
M18 X 65/75-3Wire-DC

Diameter M18

m1 Flush Switching Distance

5mm

8mm

12mm

m2 non-Flush Switching Distance

8mm

16mm

20mm

Housing Material

Nickel plated brass

With LED With LED   m2 Without LED

m1

Max  Load  Current

250Ma

Supply Voltage

10-30 volt DC

Switching  Frequency

1KHz

Response Time

0.2ms/0.2ms

Protecting  category

IP67

Operating Temperature

-25ºC- +70ºC

Short Circuit Protection

Yes

Connecting Type

2mtrs,3core pvc cable

DC 3 wire 10-30V  NPN N.O.

STI -M18NO -5/7

DC 3 wire 10-30V  NPN N.C.

STI -M18NC -5/7

DC 3 wire 10-30V  PNP N.O.

STI -M18PO -5/7

DC 3 wire 10-30V  PNP N.C.

STI -M18PC -5/7
