Vibrator Controllers CUH Make - SDVC34-XLR6.0A


We are Authorised Dealer, Distributor, Supplier of Vibrator Controllers CUH Make - SDVC34-XLR6.0A and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.


SDVC34-XLR6.0A

FEATURES :
Auto FM: Automatic output frequency modulation in real time to ensure the vibratory feeder will always work. at its best vibration frequency.
Auto Constant Speed Control: Automatic output voltage adjustment in real time to ensure constant preset feed speed regardless of weight change of the feed material in the vibratory feeder.
Auto Frequency Measuring: Automatically measure and output the best vibration frequency of the vibratory feeder.
Automatic Voltage Regulation : Eliminate both feed speed variation caused by mains voltage fluctuation and beat effect caused by industrial AC frequency.
Sync Output Waveforms : Sync output waveform of the slave controller with that of the master controller to the same frequency and phase to avoid beat effect.
Remote ON/OFF Control: The controller has 2 groups of ON/OFF control ports. Switch sensor or PLC can be connected to them to turn on/off the controller.

Automatic Switch Sensor Type Recognition: The controller can recognize and adapt to both NPN and PNP type switch sensors.

Soft Startup: In order to avoid sudden shock to the feed material and vibratory feeder, the controller can gently increase output voltage/ feed speed from 0 to the preset value when startup.
Preset Speeds: 4 preset feed speeds can be stored and output by external short -circuit signal.
Max Adjustable Output Voltage: Max Adjustable Output Voltage can be preset to protect the vibratory feeder from damage caused by high vottage.
Remote Speed Control: Output Voltage/Feed Speed of the controller can be adjusted remotely by an external potentiometer, a PLC, or a 1·5V/4-20mA DC signal.
24V DC Control Output: The controller can output 24V DC power associated with logical relation setting of the ON/OFF Control to drive a solenoid, an electrical relay or other external devices.
RS485 Communication: All parameters of the controller can be adjusted via RS485 communication ports (for SDVC34-MJ & SDVC34-MRJ)
Counting: Count number of the feed material. The controller will stow down or stop feeding when count up to preset value. (for SDVC34-MR & SDVC34-MRJ)

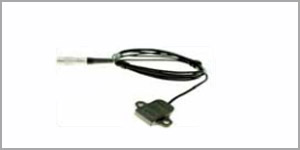

Vibration Sensor
Vibration Sensor

Standard Accessory

  • Vibration Sensor (16G, 1.2m)



Optional Accessories

  • Vibration Sensor (35G, 1.2m)
  • Vibration Sensor (50G, 1.2m)
  • Vibration Sensor (70G, 1.2m)


Dimensions: 190*147. 8*94.5(L*W*H, mm)

Weight: SDVC34- XL:1930g(without accessory)




TECHNICAL SPECIFICATIONS

Item

Range



Unit



Description

Min

Max

Input voltage

85

260

V

AC RMS Value

Output voltage

0

260

V

Less than 150% Input voltage

Output Current



0



6



A



SDVC34-XL SDVC34-XLR
SDVC34-XLJ SDVC34-XLRJ
Output Frequency 40 400 Hz
OutPut Power 0 1320 VA SDVC34-XL SDVC34-XLR
SDVC34-XLJ SDVC34-XLRJ

Output Waveform

Sine





Voltage adjustmen Accuracy 1 V
Frequency Adjustment Accuracy 0.1 Hz
ON/OFF delay 0 20 s
ON/OFF Delay Accuracy 0.1 s
Soft Startup Time 0 10 s
DC Control output Voltage 22 26 V DC output associated with ON/OFF control
DC Control output current 0 200 mA
Stand by Power Consumption 1.5 3 w
Display Method 5 Digit LED Digital Tube







Control Method

1-5 V

Remote Speed

Control Voltage

Standard TTL Electric Level   Switching Signal
/   6 Buttons + LED screen

Work Space
Temperature

-10

60

°C



Non-Condensing

Work Space Humidity

10

85

  %
