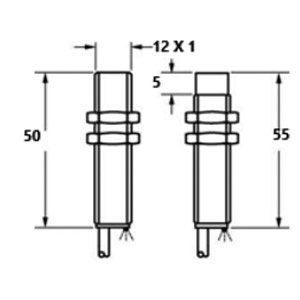

Diameter |
M12 |
||
|
2mm |
4mm |
6mm |
|
4mm |
8mm |
10mm |
Housing Material |
Nickel plated brass |
||
|
 |
||
Max Load Current |
250mA |
||
Supply Voltage |
10-30 Volt DC |
||
Switching Frequency |
1KHz |
||
Response Time |
0.2ms/0.2ms |
||
Protecting category |
IP67 |
||
Operating Temperature |
-25ºC- +70ºC |
||
Short Circuit Protection |
Yes |
||
Connecting Type |
2mtrs,3core pvc cable |
||
DC 3 wire 10-30V NPN N.O. |
STI- M12NO- 2.5/4 |
||
DC 3 wire 10-30V NPN N.C. |
STI- M12NC- 2.5/4 |
||
DC 3 wire 10-30V PNP N.O. |
STI- M12PO- 2.5/4 |
||
DC 3 wire 10-30V PNP N.C. |
STI- M12PC- 2.5/4 |
||
non-Flush Switching Distance
