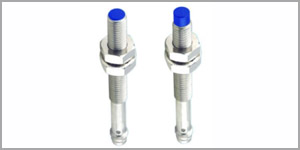

Inductive Proximity Switches - M8-3 PIN-DC



We are Manufacturer, Supplier, Exporter of Inductive Proximity Switches - M8-3 PIN-DC and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.

M8-3 PIN-DC
M8-3 PIN-DC

Diameter M8

m1 Flush  Switching Distance

1mm

2mm

3mm

m2 non-Flush  Switching Distance

2mm

4mm

6mm

Housing Material

Stainless steel/Brass

With LED With LED    m2 Without LED

m1

Max  Load  Current

250mA

Supply Voltage

10-30 Volt DC

Switching  Frequency

2KHz

Response Time

0.1ms/0.1ms

Protecting  category

IP67

Operating Temperature

-25ºC- +70ºC

Short Circuit Protection

Yes

Connecting Type

M8 connector

DC 3 wire 10-30V  NPN N.O.

STI-M8NO-1.5/2-C3

DC 3 wire 10-30V  NPN N.C.

STI-M8NC-1.5/2-C3

DC 3 wire 10-30V  PNP N.O.

STI-M8PO-1.5/2-C3

DC 3 wire 10-30V  PNP N.C.

STI-M8PC-1.5/2-C3
