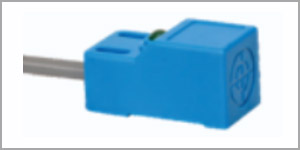

17 X 17-3Wire-DC


17 X 17-3Wire-DC
17 X 17-3Wire-DC

Switching Distance, Sn: mm

5 mm

Housing Material

ABS

With LED     Without LED

Max  Load  Current

250mA

Supply Voltage

10-30 Volt DC

Switching  Frequency

500Hz

Response Time

0.5ms/0.5ms

Protecting  category

IP67

Operating Temperature

-25ºC- +70ºC

Short Circuit Protection

Yes

Connecting Type

2mtrs,3core pvc cable

DC 3 wire 10-30V  NPN N.O.

STI-Q17NO-5

DC 3 wire 10-30V  NPN N.C.

STI-Q17NC-5

DC 3 wire 10-30V  PNP N.O.

STI-Q17PO-5

DC 3 wire 10-30V  PNP N.C.

STI-Q17PC-5
