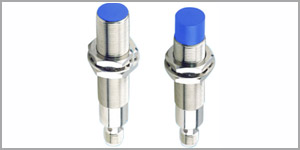

Inductive Proximity Switches - M18-4Pin-DC



We are Manufacturer, Supplier, Exporter of Inductive Proximity Switches - M18-4Pin-DC and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.

M18-4Pin-DC
M18-4Pin-DC

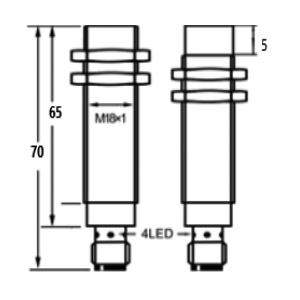

Diameter M18

m1 Flush Switching Distance

5mm

8mm

12mm

m2 non-Flush Switching Distance

8mm

16mm

20mm

Housing Material

Nickel plated brass

With LED With LED    m2 Without LED

m1

Max  Load  Current

250Ma

Supply Voltage

10-30 Volt DC

Switching  Frequency

300Hz

Response Time

0.5ms/0.5ms

Protecting  category

IP67

Operating Temperature

-25ºC- +70ºC

Short Circuit Protection

Yes

Connecting Type

M12 Connector

DC 3 wire 10-30V  NPN N.O.

STI-  M18NO- 5/7-C

DC 3 wire 10-30V  NPN N.C.

STI-  M18NC- 5/7-C

DC 3 wire 10-30V  PNP N.O.

STI-  M18PO- 5/7-C

DC 3 wire 10-30V  PNP N.C.

STI-  M18PC- 5/7-C
