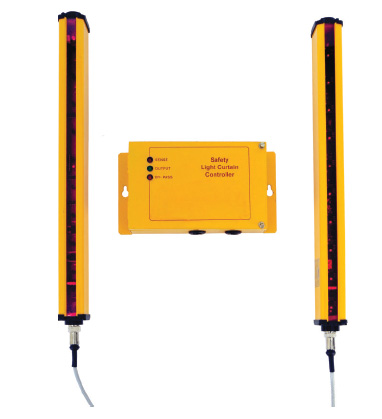

Optical Safety Light Curtains



We are Manufacturer, Supplier, Exporter of Optical Safety Light Curtains, Light Curtain Sensors and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.

Specification
Power Supply 12 - 24 Volts Dc / 240 VAC
Supply Protection Reverse Polarity Protected
Output Duel Output : PNP or Dual
NPN / NO or NC
Output Indication  Trough LEDs
Channel Indication LED Indication for each channel
Responce Time On to Off : 10 - 15 m sec.
Off to On : 50 -100 m sec.
Restart Automatic
No of beams 6, 8, 10, 16, 24, 32, nos.
Beam By Pass Provided in hand / body
protection models
Protected Heights 90-1890 mm
Pitch offered 11 - 20 - 30 - 40 - 50 - 90mm
Adjustable Range Up to 3 meters (higher range up to 20 meters available)
Electrical Connections Plug in connector for Emitter & Receiver
Standard Cable length 5 meters for Emitter, 3 meters for Reciever
Operating Temperature Up to 55 Degrees centigrade
Fastening Modes Slide Slot on the back Mil adjustable height
Cross Section 36 X 42 mm
Applicable to Diectly work with PLCs / Controllers
Suitable for Machines with quick emergency stop
Protections Output short circuit protected.
Vibration resistance Amplitude: 0.75 mm (p) Freq: 10-55 Hzs
Rate : 1 Octave / min
Operating ambient Light 500 Lux (max.) when source is places
opposite to receiver
  > 3000 lux when source placed at an angle of 20 degrees.

Protected Height Parallel Beam Overall Height
mm Models Beam mm
150 LC 0630 - 20 P 6 245
180 LC 1020 - 20 P 10 305
200 LC 0640 - 20 P 6 295
210 LC 0830 - 20 P 8 295
250 LC 0650 - 20 P 6 345
270 LC 1030 - 20 P 10 365
280 LC 0840 - 20 P 8 370
300 LC 1620 - 20 P 16 435
350 LC 0850 - 20 P 8 440
360 LC 1040 - 20 P 10 455
380 LC 2020 - 20 P 20 645
450 LC 1050- 20 P 10 545
450 LC1630 - 20 P 16 535
500 LC 2620 - 20 P 26 610
600 LC 1640 - 20 P 16 685
620 LC 3220 - 20 P 32 715
690 LC 2430 - 20 P 24 770
750 LC 1650 - 20 P 16 840
780 LC 4020 - 20 P 40 885
920 LC 0630 - 20 P 24 1005
930 LC 3230- 20 P 32 1010
1150 LC 2450 - 20 P 24 1250
1170 LC 4030 - 20 P 40 1250
1240 LC 3240- 20 P 32 1325
1410 LC 4830 - 20 P 48 1490
1550 LC 0630 - 20 P 32 1640
1645 LC 0630 - 20 P 40 1650
1650 LC 0630 - 20 P 56 1725
1890 LC 6430 - 20 P 64 1965
