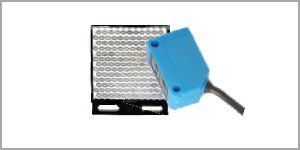

Retro-Reflective Sensor



31 X 20 X 12-3Wire-DC


31 X 20 X 12-3Wire-DC
31 X 20 X12-3Wire-DC

Diameter

            Q31

Sensing    Mode

Retro-reflective

Sensing Range

4M

Housing Material

ABS

Max  Load  Current

250mA

Supply Voltage

10-30 Volt DC

Switching  Frequency

250Hz

Response Time

1ms

Protecting  category

IP67

Operating Temperature

-25ºC- +55ºC

Short Circuit Protection

Yes

Connecting Type

2mtrs,3core pvc cable

DC 3 wire 10-30V  NPN N.O.

PPQ31-R4N-C1V2

DC 3 wire 10-30V  PNP N.C.

PPQ31-R4P-C1V2







Request a Quote

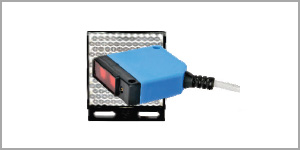

17 X 50 X 55-3Wire-DC


17 X 50 X 55-3Wire-DC
31 X 20 X 12-3Wire-DC

Diameter

            Q50

Sensing    Mode

Retro-Reflective

Sensing Range

2m

Housing Material

Plastic

Max  Load  Current

250mA

Supply Voltage

10-30 Volt DC

Switching  Frequency

250Hz

Response Time

5ms

Protecting  category

IP67

Operating Temperature

-25ºC- +55ºC

Short Circuit Protection

Yes

Connecting Type

2mtrs,3core pvc cable

DC 3 wire 10-30V  NPN N.O.

STO-17X50NO-RR

DC 3 wire 10-30V  NPN N.C.

STO-17X50NC-RR

DC 3 wire 10-30V  PNP N.O.

STO-17X50PO-RR

DC 3 wire 10-30V  PNP N.C.

STO-17X50PC-RR



Request a Quote

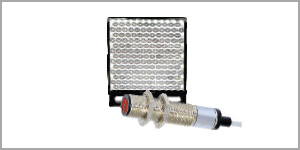

M18 X 55-3Wire-DC


M18 X 55-3Wire-DC
M5 X 28-3Wire-DC

Diameter

            M18

Sensing    Mode

Retro-Reflective

Sensing Range

2 M

Housing Material

Brass

Max  Load  Current

250Ma

Supply Voltage

10-30 Volt DC

Switching  Frequency

100Hz

Response Time

15ms

Protecting  category

IP67

Operating Temperature

-25ºC- +55ºC

Short Circuit Protection

Yes

Connecting Type

2mtrs,3core pvc cable

DC 3 wire 10-30V  NPN N.O.

PBM18-R3N-C1V2

DC 3 wire 10-30V  NPN N.C.

PBM18-R3P-C1V2

DC 3 wire 10-30V  PNP N.O.

PBM18-R3N-D1V2

DC 3 wire 10-30V  PNP N.C.

PBM18-R3P-D1V2



Request a Quote
